Skip to main content

New Earrings And Having Fun With Bronze Sheet


Continuing my experiments with and learning more about working with bronze, I had a go at etching some bronze sheet last week. It came out really well and behaved very similarly to copper. The only difference was it took slightly longer to etch than copper - about an hour and 45 minutes compared to 30 to 40 minutes with copper.


The design stamped on the bronze sheet.


The results of the etching after the first rinse.


The etched sheet after removing the ink with nail varnish remover and giving it a scrub with steel wool.

So the next step was to make something with the etched bronze sheet!

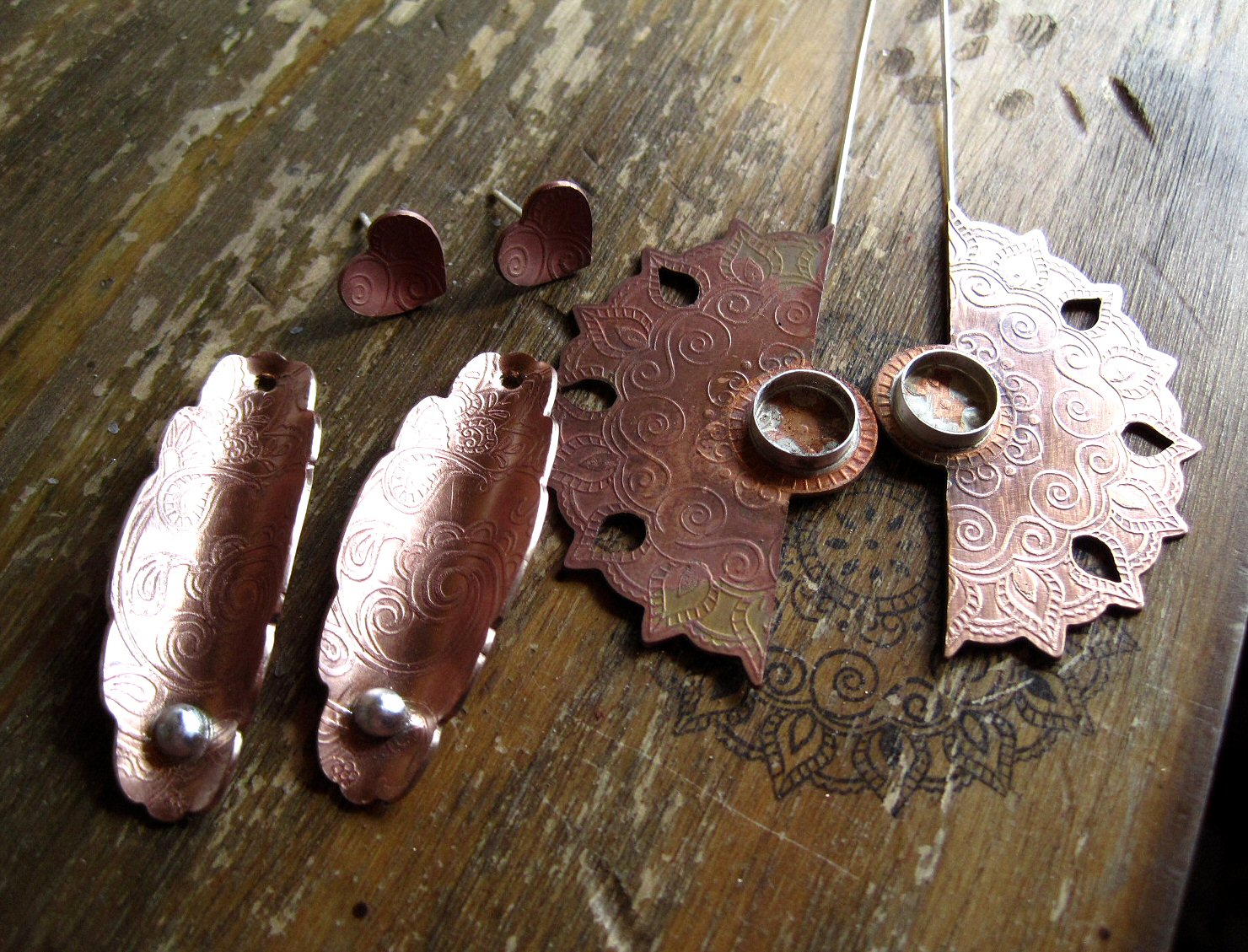

Heating and pickling bronze results in it being covered with layer of copper. I'm not sure if this occurs due to heat from the torch during annealing/soldering or if it's the result of the bronze going into the pickle {maybe someone will tell me} but the bronze has a definite copper hue after it's taken out of the pickle as you can see in this photo.



Luckily someone commented on one of my previous posts about bronze findings with the answer to this problem. Thank you Nana Louise!
Soaking the bronze in a mix of hydrogen peroxide and white vinegar - I used a 3:1 mix - for about 20 to 30 minutes then rinsing in white vinegar gets rid of the copper plating and restores the natural bronze colour.


Bubbles form on the bronze while it soaks in the hydrogen peroxide and white vinegar mix. Small brown patches appear on the metal as it cleans which can be removed by then soaking the bronze in white vinegar.


Restored to a nice bronze colour although the heart studs and curved earrings probably could have done with a bit longer in the "super" pickle.

After rinsing in water I cleaned the bronze earrings with steel wool which is my medium of choice when it comes to cleaning metal that's just been pickled. I find I can see the state of the metal better that way. I washed the earrings with washing up liquid and water to make sure they were grease free then I oxidized them in LOS.

The finished earrings.


Etched bronze heart studs


Curved scalloped edge bronze earrings


 Malachite and etched bronze earrings

I'm in a quandry about this pair as you can see they don't hang totally vertically. They must be bottom-heavy {I know that feeling!} which I didn't consider when I came up with the design. I think they look ok and when worn aren't going to look too strange but part of me wants to cut them down to a wedge shape and add an earwire to the middle pierced hole so they hang with the malachite cab at the bottom....which would be a shame in a way but would satisfy the neat-freak perfectionist part of my brain.

So will I chop them down or won't I?
To be decided......

Comments

  1. I think the design is so good that they'd work on their 'side' and I think, if it was me, I'd be tempted to have them hang that way too... but, having said that, the way they are now means someone could wear them facing 'forwards' or 'backwards' which would give some variety... I look forward to finding out what you decide to do and am enjoying learning about bronze through your posts :)

    ReplyDelete
    Replies
    1. Thanks Mossy, I still haven't decided what to do with them.....:D

      Delete
  2. You are doing amazing work with the bronze Tracy! I actually like the way the earrings hang because they will frame a face more. :)

    ReplyDelete
  3. They are gorgeous! Love the pattern. :)

    ReplyDelete
  4. Fantastici!!! Mi piace seguire i tuoi sviluppi con il bronzo! Posso chiederti dove hai acquistato i timbri del disegno, sono favolosi!!!

    ReplyDelete
    Replies
    1. Thanks Monica. I got the stamps from Sticky Tiger - http://www.stickytiger.co.uk/

      Delete
  5. Such unusual earrings.
    They remind me of something you might see in paintings of Cleopatra.
    Heather :)

    ReplyDelete
    Replies
    1. Thanks for your comment Heather. They are a bit different shape-wise to stuff I've done before :D

      Delete
  6. Those malachite earrings are gorgeous! I actually had similar "accident" with my newest earrings. They don't have any stone in them, but the design alone means they aren't balanced, so they hang very similarly to yours. Well, we learn something new every day, like taking how the design may affect behaviour of finished piece into consideration! That said, I rather like the way they hang :)

    ReplyDelete
    Replies
    1. Thanks Kasia! How things are going to hang is something I will now think about more before trying a new design! I think I am going to "re-design" the malachite pair....

      Delete
  7. Are they too wide to be turned 45 degrees and hang the ear wire just above the cab? Then they wouldn't have to be cut down.

    ReplyDelete
    Replies
    1. Thanks for your comment Cynthia. I did think of doing them that way but they are a bit wide plus I can't do anymore soldering now the stone is set.

      Delete
  8. hello! It is absolutely amazing! Could you tell what the thickness of metal?

    ReplyDelete
    Replies
    1. Hi Irina,
      I used 0.7mm bronze sheet. It was pretty hard to find in the UK to be honest :D

      Delete
    2. Thank you very much! I understand you very much, because I'm still looking for this thickness in Russia :D

      Delete
  9. Hello. Could you please tell, which instrument do you use to stamp the metall? Is stamp stand unharmed after it?

    ReplyDelete
    Replies
    1. Hi, I use a rubber stamp with ink to stamp the design on the bronze then soak the metal in ferric chloride to etch it. The ink acts as a resist to produce the pattern.

      Delete
    2. Which ink do you use?

      Delete
    3. I use StazOn ink. Any colour will work as far as I know :D

      Delete

Post a Comment

Your comments and questions are very welcome!
If you would prefer to contact me directly please use the contact form on my "get in touch" page.

Popular posts from this blog

Etching Silver Using Nail Art Stamps

So my love/hate relationship with etching sterling silver continues. I've tried a few times now and always end up with different results most of them not that great to be honest. I've tried connecting the silver and a piece of copper to a 9v battery and also heating the ferric nitrate. Sometimes the results are good sometimes not so good. I currently have an etched piece of silver sheet waiting to be reticulated and rid it of the mess that is the etched "pattern".
I now know that using stamps and Stayz On ink just doesn't work with silver - the time needed to etch using ferric nitrate is much longer than etching copper and the ink starts to wear away after about an hour. This results in the pattern being patchy as the resist is eaten away and the silver ends up quite lumpy and course looking. I have yet to try using pnp paper. I don't know why but it all seems a bit of a faff to do. I don't have a laser printer so would need to find somewhere or someone…

Embossing Metal With My Sizzix Bigshot

I must admit up until a few weeks ago I was vaguely familiar with the name Sizzix but as to what you actually did with a "Sizzix" I was completely in the dark! That was until I stumbled across a video from Vintaj showing how you could use their embossing folders with a Bigshot to create designs on metal ("metal" - my favourite word after chocolate!)
I was really impressed and itching to have a go, I just needed a Bigshot........ I waited a few weeks then when the urge to possess one overcame me I went out debit card at the ready..............and the shop had sold out! So I trundled off to The Range on the off chance and came home clutching my own surprisingly heavy pink and black wonder machine. It sat on the dining room table for a couple of days while I waited for the embossing folders I'd ordered online to arrive then the time came to start playing!


I started with some pre-cut 24g copper hearts and the Wildflower Vines and the Butterfly Swirls Deco Embossin…

Rolling Mill Textures On Metal

I had another play with my rolling mill last week using some of the texture sheets from Etsy shop Rolling Mill Resource. I used some sterling silver and copper sheet and soon discovered it's best to get organized before you start!

I cut the sheet to size and worked out which design was going on which piece of metal. I also tried a feather but more on that later. Most of the sheet I used was 20g/0.8mm with one piece of 18g/1.0mm and one of 22g/0.6mm.
I've read that you should do a dead pass of the metal through the rolling mill with the gap the same size as the metal and texturing item. I'm not sure what this is supposed to achieve but I don't bother doing it. Judging the correct size of gap between the rollers is a trial and error thing that you discover by setting the gap then starting to roll the metal through. If there's too much resistance you make the gap bigger until there's just enough resistance to roll the metal through without giving yourself a herni…
