Etching Copper With Ferric Chloride


 I decided recently that etching is one of my favourite things to do with metal. I read about it online quite a while ago and immediately thought it looked cool but the thought of using an "acid" and having to find somewhere to store it (a perennial problem when you don't have a workroom) put me off. So instead I admired etched copper from afar. Until I got a bee in my bonnet about it again and bought Lexi Erikson's copper etching dvd.

Lexi Erikson is very good at explaining jewellery techniques and making them seem much more straightforward than they first appear. I already knew that ferric chloride was a salt and not an acid so wouldn't eat my flesh through to the bone if I accidently spilled some on my hand. The dvd made me feel much more comfortable about having a go so I ordered some ferric chloride from ebay and bought some stamps and StazOn ink from a local craft shop. My first attempt went ok but for some reason I left the copper to etch for an hour and a half without checking it at all. Don't ask me why I did that, I have no idea! The copper etched ok but a really deep etch that left it looking a bit chewed up and rough around the edges. Having learned my lesson I had another go and got much better results the second time.
These photos are from a recent etching session. Please note this isn't strictly a tutorial and I would recommend reading up on copper etching with ferric chloride in order to do it safely and learn what you can and can't tip down the drain!


Ferric Chloride in my glass etching dish, never to be used for cottage pie again!
I pour it back into the bottle when I've finished etching. It will eventually lose it's power and need to be replaced. When that happens I will need to ring the council and find out where to take the spent ferric chloride as it is classed as hazardous waste and cannot be tipped down the drain.


Some very cute Dovecraft mini letter stamps I found at The Range for 99p! They were available in other fonts too but I chose this one mainly for the heart (at the top next to the e). As you can see I don't do keeping things in order!

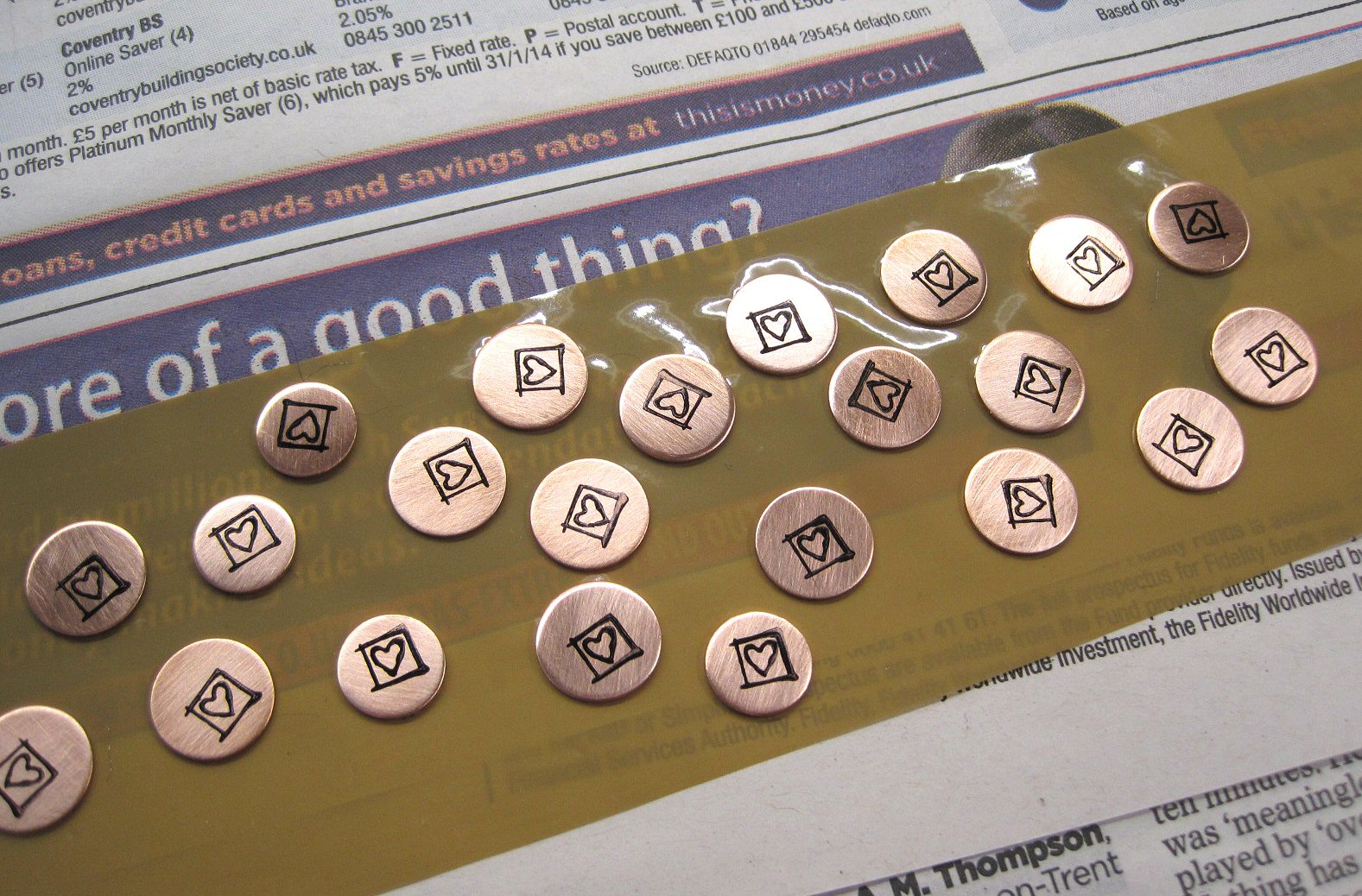

 Copper discs stamped with StazOn ink and the heart stamp. They're stuck to the packing tape ready for suspending in the ferric chloride. Before stamping the design I cleaned the copper with wire wool to remove any grease from my fingers.


Copper washers stamped and ready for etching.


The small copper discs suspended upside down in the solution. This allows the copper etched away to fall to the bottom of the dish. Giving the dish a wiggle or stirring the ferric chloride occasionally will help to loosen the particles of copper from the surface of the discs. I normally leave it for about 30 minutes before checking the etch. I use a piece of copper wire and gently scratch the design to feel how deep the etch is. At the moment it takes about 30-40 mins to get the depth of etch I like. As the ferric chloride becomes contaminated with copper particles the etching time will increase.


When the etch is deep enough I remove the tape from the glass dish and dunk the lot in a water and baking soda solution. Then I remove the copper pieces from the tape and clean under the tap with a toothbrush. You can clean the ink and mustard coloured residue off with wire wool then I like to pickle them to make sure everything is properly clean.
 I must admit I don't wear gloves to remove the tape from the glass dish as they stick to the tape and get annoying, but you may prefer to. I have got ferric chloride on my hands accidently and still have all my fingers but please remember chemicals need to be treated with respect.


A close-up of the etched discs, before and after cleaning.



I have no idea what I'm going to do with these larger pieces yet!
Below are some of the etched copper pieces turned into charms and earrings.



Copper studs



Etched copper washers with sodalite


Etched heart charms
